| Kategori | Spesifikasi / Keterangan |
|---|---|
| Sistem & Prosesor | Embedded Processor |
| Tipe Produk | Standalone |
| Tombol | Mechanical |
| Protokol Jaringan | IPv4, IPv6, RTSP, RTP, TCP, UDP, P2P |
| Protokol OSDP | Yes |
| Interoperability | ONVIF, CGI |
| SDK & API | Yes |
| Layar | 2.4-inch LCD-TFT, resolusi 320×240, Non-touchscreen |
| Kamera | 2 MP CMOS HD Dual Cameras, DWDR, Auto IR |
| Audio | Voice Prompt: Yes, Speaker: Yes |
| Material Casing | PC + ABS |
| Metode Verifikasi | Kartu, Password, Fingerprint, Face Unlock, Remote |
| Tipe Kartu | IC Card (13.56 MHz, ASK modulation, jarak baca 0–3 cm) |
| Daftar Periode | 128 periods + 128 holiday periods |
| Wi-Fi | IEEE802.11b/g/n, 2.4 GHz |
| Reader Tambahan | RS-485 atau Wiegand card reader |
| Fitur Tambahan | Multi-factor authentication, Real-time monitoring, Remote verification, Auto registration, Web configuration |
| Face Recognition | Jarak 0.3–1.5 m, Tinggi 1.2–2.0 m, Akurasi 99.9%, Waktu 0.2 s |
| Fingerprint | Optical sensor, Mode 1:N, Perbandingan 1.5 s, Identifikasi 0.5 s |
| Kapasitas User | User: 1000, Face: 1000, Fingerprint: 3000, Card: 3000, Password: 1000 |
| Kapasitas Log | 100,000 records |
| Port & Antarmuka | RS-485 (1), Wiegand (1), USB 2.0 (1), Ethernet 10/100 Mbps (1), Doorbell (1), Exit Button (1), Door Status (1), Lock Control (1), Power Output 12V 1A |
| Alarm | Anti-pass back, Tamper alarm, Duress alarm, Intrusion, Illegal card threshold, Door sensor timeout, Duress fingerprint |
| Power Supply | 12 VDC, 2 A (≤12 W) |
| Dimensi Produk | 184.9 × 76.2 × 20.5 mm (7.28″ × 3.00″ × 0.81″) |
| Dimensi Kemasan | 219 × 122 × 58 mm (8.62″ × 4.80″ × 2.28″) |
| Berat | Gross: 0.37 kg, Net: ±0.3 kg |
| Lingkungan Operasi | Indoor, Suhu –10 °C ~ +45 °C, Kelembapan 0–90% RH |
| Lingkungan Simpan | –20 °C ~ +70 °C, Kelembapan 30–75% |
| Ketinggian Operasi | 0–1300 m |
| Aksesori Bawaan | Wall mount bracket |
| Instalasi | Wall Mount |
| Aksesoris Tambahan | – Mika Acrylic untuk Mesin Absensi – Paket Material M-Lock – Paket Material Dropbolt untuk Pintu Kaca |
| Pengiriman | Senin–Jumat: 08.00–17.00 Sabtu: 08.00–14.00 Minggu & Tanggal Merah: Libur |
| Layanan Tambahan | Training & pemasangan tersedia Info lebih lanjut: 0877-7993-9366 |

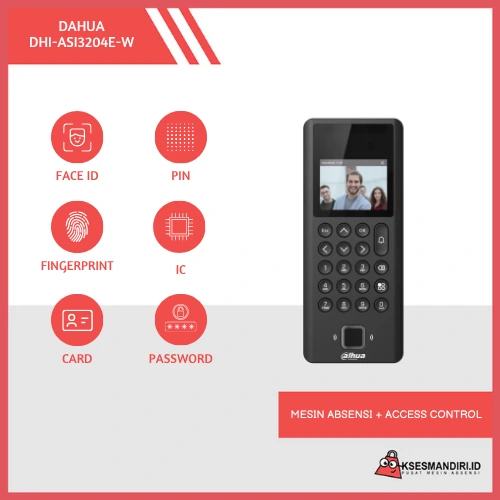

DAHUA DHI-ASI3204E-W Single Door Face Recognition Access Controller
Rp1.025.000
- Dahua Single Door Face Recognition Access Controller
- >Comes with a 2.4 inch LCD with a resolution of 320 (H) × 240 (V).
- >2-MP CMOS dual-lens camera with IR illumination and DWDR.
- >Multiple unlock methods including face, IC card, password, fingerprint. You can configure scheduled unlock methods, or combine them to create your own personal unlock methods.
- >Supports 1,000 users, 1,000 faces, 3,000 fingerprints, 3,000 cards, 1,000 passwords, 50 administrators, and 100,000 records.
- >Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 seconds per person.
- >Supports security extension modules for access control, preventing doors from being forcefully opened.
- >Supports Web attendance management and exporting local attendance reports.
- >Supports doorbell.
- >TCP/IP and Wi-Fi connection.
- >Provides power to the electromagnetic lock and card reader (max 12 V, 1 A).
