| Kategori | Detail |
|---|---|
| Deskripsi Produk | DH-304FPIA adalah perangkat akses kontrol standalone untuk satu pintu dengan autentikasi kartu Mifare (IC), sidik jari, password, dan kombinasi multi-user. Dilengkapi layar LCD 2.4 inci, mendukung hingga 5.000 pengguna, serta fitur keamanan seperti tamper alarm, duress alarm, anti-passback, dan alarm pelanggaran. |
| Prosesor & Sistem | Embedded Processor, tombol mekanik, protokol: UDP, TCP, IPv4, P2P, OSDP, interoperabilitas ONVIF & CGI, SDK & API didukung |
| Tampilan | Layar LCD TFT 2.4 inci, resolusi 240×320 piksel, backlight, panduan suara |
| Verifikasi & Fungsi | Metode: kartu Mifare, password, sidik jari (optik), remote, kombinasi multi-user • Mode: 1:N • Waktu verifikasi: ±1 detik • Multi-factor & remote verification • Auto registration • Daftar pengguna khusus (VIP, tamu, patroli, blocklist) • 128 periode umum + 128 periode libur |

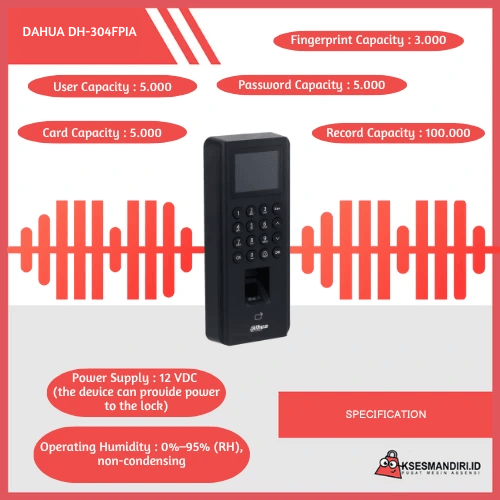

| Kapasitas | Pengguna: 5.000 • Kartu: 5.000 • Password: 5.000 • Sidik jari: 3.000 • Rekaman: 100.000 |
| Konektivitas & Port | RS-485 (1) • Wiegand (1) • USB 2.0 (1) • RJ-45 Ethernet 100 Mbps (1) • Tombol Exit & deteksi pintu • Kontrol kunci • Alarm input/output (masing-masing 1) • Doorbell (1) • Alarm linkage |
| Alarm & Keamanan | Anti-passback • Tamper alarm • Duress alarm • Intrusi & timeout pintu • Alarm kartu/password ilegal |
| Daya & Instalasi | Input: 12 VDC (bisa supply ke kunci) • Konsumsi: ≤12 W • Adaptor opsional • Pemasangan surface mount (sudut lurus) |

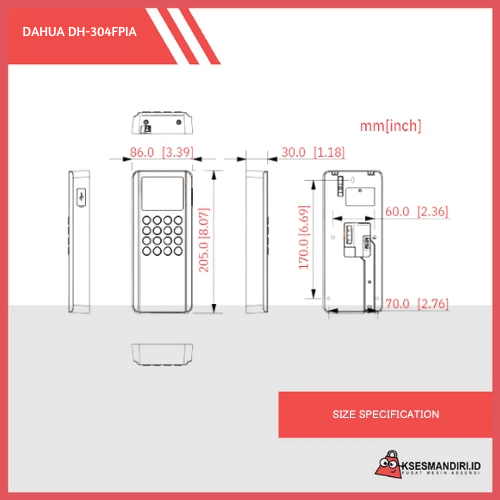

| Dimensi & Berat | Ukuran: 205 × 86 × 30 mm • Berat kotor: 0.45 kg |
| Lingkungan Operasional | Suhu: –10 °C hingga +55 °C • Kelembaban: 0%–95% RH (non-kondensasi) • Ketinggian: 0–3.000 m • Indoor |
| Sertifikasi | CE, FCC |
| Aksesoris & Paket Tambahan | Mika Acrylic • Paket Material M-Lock • Paket Material Dropbolt |
| Pengiriman | Senin–Jumat: 08.00–17.00 • Sabtu: 08.00–14.00 • Minggu & Tanggal Merah: Libur |
| Layanan Tambahan | Training & pemasangan tersedia (hubungi 0877-7993-9366) |
DAHUA DH-304FPIA Mesin Absensi Single Door IC Card, Password, Fingerprint Access Standalone
Rp825.000
- 2.4″ TFT display screen with a resolution of 240 × 320.
- Audio prompts.
- Supports 5,000 users, 5,000 cards, 5,000 passwords, 3,000 finger prints, and 100,000 records.
- The security module expansion is supported to enhance security and protect against the device being opened during a power failure.
- Fingerprint/card/remote/password unlock and unlock through their combinations.
- Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm, illegal password exceeding threshold alarm, external alarm and anti-passback alarm.
- Supports guest users, patrol users, blocklist users, VIP users, general users, and others.
- TCP/IP communication; auto registration, P2P registration, and DHCP.
- Supports online update and USB update.
